drylin  R                                                                                                                                                                                                                 drylin  R
                                                                                                                                                                                                                                      ®
            ®
                               ®
                                                                                                                                           ®
         shaft       drylin  R liners | Product range                                                                            drylin  R liners | Product range                                                                  shaft
        guides                                                                                                                                                                                                                    guides

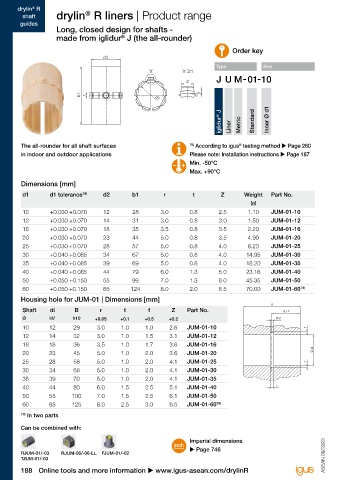

                     Long, closed design for shafts -                                                                            Long, open design for supported shafts -
                     made from iglidur  J (the all-rounder)                                                                      made from iglidur  J (the all-rounder)
                                                                                                                                                       ®
                                            ®
                                                                                   Order key                                                                                                               Order key
                                     d2                                                                                                                       d2
                                                                             Type            Size                                                                                                    Type                Size
                                                      Y          Y 2:1
                                                                                                                                                                             Y           Y 2:1
                                                                   Z                                                                                                                      Z

                                                                       t
                             b1  r                     d1                                                                                            b1  r                                      t
                                                                                                                                                                               d1
                                                                               iglidur ®  J  Liner  Metric  Standard  Inner Ø d1                                                                       iglidur ®  J  Liner  Metric  Open  Standard  Inner Ø d1





                                                                                                                                                                                                             ®
                                                                                     ®
        The all-rounder for all shaft surfaces                      78)  According to igus  testing method u Page 260            The all-rounder for all shaft surfaces                     78)  According to igus  testing method u Page 260
        in indoor and outdoor applications                          Please note: Installation instructions u Page 187            in indoor and outdoor applications                         Please note: Installation instructions u Page 187
                                                                    Min. -50°C                                                                                                              Min. -50°C
                                                                    Max. +90°C                                                                                                              Max. +90°C
        Dimensions [mm]                                                                                                          Dimensions [mm]

         d1        d1 tolerance 78)  d2        b1         r          t         Z       Weight   Part No.                         d1        d1 tolerance 78)  d2         b1         r         t         Z       Weight   Part No.
                                                                                         [g]                                                                                                                     [g]
                                                                                         [g]
         10        +0.030 +0.070     12         28       3.0        0.8       2.5       1.10    JUM-01-10                        10        +0.030 +0.070     12         28        3.0       0.8       2.5       0.90    JUMO-01-10
         12        +0.030 +0.070     14         31       3.0        0.8       3.0       1.50    JUM-01-12                        12        +0.030 +0.070     14         31        3.0       0.8       3.0       1.16    JUMO-01-12
         16        +0.030 +0.070     18         35       3.5        0.8       3.5       2.20    JUM-01-16                        16        +0.030 +0.070     18         35        3.5       0.8       3.5       1.71    JUMO-01-16
         20        +0.030 +0.070     23         44       5.0        0.8       3.5       4.90    JUM-01-20                        20        +0.030 +0.070     23         44        5.0       0.8       3.5       4.16    JUMO-01-20
         25        +0.030 +0.070     28         57       5.0        0.8       4.0       8.23    JUM-01-25                        25        +0.030 +0.070     28         57        5.0       0.8       4.0       6.97    JUMO-01-25
         30        +0.040 +0.085     34        67        5.0        0.8       4.0      14.95    JUM-01-30                        30        +0.040 +0.085     34         67        5.0       0.8       4.0       12.38   JUMO-01-30
         35        +0.040 +0.085     39        69        5.0        0.8       4.0      18.20    JUM-01-35                        40        +0.040 +0.085     44         79        6.0       1.3       5.0       20.18   JUMO-01-40
         40        +0.040 +0.085     44        79        6.0        1.3       5.0      23.16    JUM-01-40                        50        +0.050 +0.150     55         99        7.0       1.3       6.0       38.60   JUMO-01-50
         50        +0.050 +0.150     55        99        7.0        1.3       6.0      45.35    JUM-01-50                        60        +0.050 +0.150     65        124        8.0       2.0       6.5       60.10   JUMO-01-60  79)
         60        +0.050 +0.150     65        124       8.0        2.0       6.5      70.00    JUM-01-60  79)

        Housing hole for JUM-01 | Dimensions [mm]                                                                                Housing hole for JUMO-01 | Dimensions [mm]
                                                                                                B                                                                                                                        B
         Shaft     di      B        r        t       f       Z     Part No.                         B / 2                        Shaft   di      B      W       r      t      f       Z   Part No.                           B / 2
         Ø        H7       h10    +0.05    +0.1     +0.5    +0.2                                  Ø Z                            Ø       H7     h10           +0.5   +0.05   +0.1    +0.2                              r
         10       12       29      3.0      1.0     1.0      2.6   JUM-01-10                                 f                   10      12     29     7.3     3.0    1.0    1.0     2.6  JUMO-01-10
         12       14       32      3.0      1.0     1.5      3.1   JUM-01-12                                                     12      14     32     9.0     3.0    1.0    1.5     3.1  JUMO-01-12                                 t
         16       18       36      3.5      1.0     1.7      3.6   JUM-01-16                                                     16      18     36     11.6    3.5    1.0    1.7     3.6  JUMO-01-16                                   Ø di
         20       23       45      5.0      1.0     2.0      3.6   JUM-01-20                                   Ø di              20      23     45     12.0    5.0    1.0    2.0     3.6  JUMO-01-20
         25       28       58      5.0      1.0     2.0      4.1   JUM-01-25                                 t                   25      28     58     14.5    5.0    1.0    2.0     4.1  JUMO-01-25
         30       34       68      5.0      1.0     2.0      4.1   JUM-01-30                                                     30      34     68     16.6    5.0    1.0    2.0     4.1  JUMO-01-30
         35       39       70      5.0      1.0     2.0      4.1   JUM-01-35                                                     40      44     80     21.0    6.0    1.5    2.5     5.1  JUMO-01-40                      Ø Z
                                                                                                                                                                                                                        W
         40       44       80      6.0      1.5     2.5      5.1   JUM-01-40                      r                              50      55     100    25.5    7.0    1.5    2.5     6.1  JUMO-01-50
         50       55      100      7.0      1.5     2.5      6.1   JUM-01-50                                                     60      65     125    27.2    8.0    2.5    3.0     6.5  JUMO-01-60  79)
         60       65      125      8.0      2.5     3.0      6.5   JUM-01-60 79)                                                 79)  In two parts
        79)  In two parts

        Can be combined with:                                                                                                    Can be combined with:
                                                                                                                                                                                                               f
                                                                    Imperial dimensions                                                                                                      Imperial dimensions
                                                                    u Page 746                                                                                                               u Page 746
        RJUM-01/-03    RJUM-06/-06-LL  FJUM-01/-02                                                                 ASEAN 09/2023  ASEAN 09/2023  OJUM-01/-03  OJUM-06/-06-LL
        TJUM-01/-03
        188 Online tools and more information u www.igus-asean.com/drylinR                                                                  3D CAD files, prices and delivery time online u www.igus-asean.com/drylinR              189
