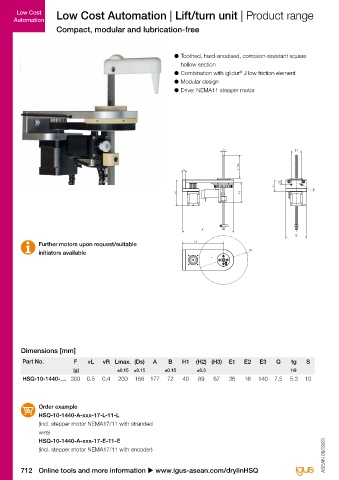

Low Cost Low Cost Automation | Lift/turn unit | Product range Low Cost Automation | SLQ linear module | Product range Low Cost
Automation Automation
Compact, modular and lubrication-free Torque-resistant, controlled separately

● Toothed, hard-anodised, corrosion-resistant square Torque-resistant, lubrication-free linear module. Low
hollow section mass and compact in the working area.
®
● Combination with iglidur J low friction element One linear module with two directions of motion which
● Modular design can be controlled separately. This way, both drives are
● Drive: NEMA11 stepper motor located outside the working area. This saves space and
no unnecessary motor weight is moved. The linear guide
is torque-resistant and thanks to the compact modular
construction, high speeds can be reached with low power.
● Quiet and lightweight
● No electronics in the working area
● Compact structure
Q E1 ● Corrosion-resistant

L max Typical application areas:
S
● Medical technology
E2
H1 ● Pick & place
tg
H2 H3 ● Gripper technology

LH1
A Q
LH1
B
Q
Further motors upon request/suitable E3 LH1 H1 (LH2) H1
Q
Ds
initiators available H
H
ha ha
lt
LH2H1
H LH2
ha
B2
d2 ts
B1
LH2
A E1 E2
B2 tk
d2 ts B1 E3
B1 B2
d1
lt tk
E3
A E1 E2 d1 E1
A E2
lt tk d2
E3
d1 ts
Dimensions [mm] Dimensions [mm]
Part No. F vL vR Lmax. (Ds) A B H1 (H2) (H3) E1 E2 E3 Q tg S Part No. Max. axial F LH1 LH2 H H1 ha A E1 E2
[g] ±0.15 ±0.15 ±0.15 ±0.3 h9 [N]
HSQ-10-1440-… 300 0.5 0.4 200 168 177 72 40 89 67 36 16 140 7.5 5.3 10 SLQ-1210-… 200 500 200 30 58 15 108 94 44
SLQ-121012-… 2 500 200 30 58 15 124 108 44

Order example Part No. E3 B1 B2 lt d1 d2 ts tk
HSQ-10-1440-A-xxx-17-L-11-L
(incl. stepper motor NEMA17/11 with stranded SLQ-1210-… 46.5 68 28 22 12 12 6.6 –
wire) SLQ-121012-… 30.0 90 28 22 12 10 6.6 11
HSQ-10-1440-A-xxx-17-E-11-E
(incl. stepper motor NEMA17/11 with encoder) ASEAN 09/2023 ASEAN 09/2023

712 Online tools and more information u www.igus-asean.com/drylinHSQ 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinSLQ 713
